Seldén shackles for dinghy rigging and deck hardware, forged stainless steel D-shackles, bow shackles and key shackles, a high-load Duplex 2205 D-shackle, snap shackles and adaptors, a soft shackle and the Optimist class-legal snap shackle for sheet release.
How to choose
The right shackle depends on the application, the load and whether quick release is needed. Standard forged 316 stainless steel shackles suit the majority of dinghy rigging connections. The high-load Duplex 2205 D-shackle is specified for the heaviest applications and for specific Seldén block and furling system fittings. Snap shackles and snap shackle adaptors are for connections that need to be released quickly under load or without tools.
D-shackles are the most common type for rigging. They have a straight gate and suit applications where the load is primarily inline. Bow shackles have a wider, rounded bow that distributes load across a broader surface and suits connections where the load may come from multiple directions or where a block or fitting needs to swivel freely. Key shackles have a longer body suited to connecting two fittings that need some separation.
Choose pin diameter to match the block or fitting you are connecting to. Several shackles in this collection are referenced to specific Seldén blocks: the M4x8x15 mm D-shackle fits BBB30 and BBB40 blocks, and the high-load ø12 mm Duplex D-shackle fits PBB100 blocks and Furlex 404S/E/TD furling systems. Always match the shackle pin to the fitting's specified hole size.
The captive pin variant of the M5 D-shackle prevents the pin from being lost when the shackle is opened, useful in applications where the shackle is operated frequently.
The twisted S-hook is not a shackle in the conventional sense but a quick-attachment clew hook for outhaul systems, passed around the boom and connected to the mainsail clew for easy rigging and de-rigging.
What's in this collection

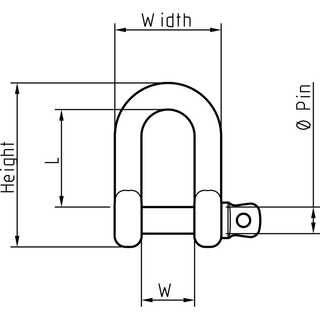

D-shackles in forged 316 stainless steel are available in six sizes: M4x8x15 mm (307-080, for BBB30/BBB40), M5x10x20 mm with captive pin (307-019), M5x11x19 mm (307-081), M6x12x22 mm (307-086), M8/6x13x21 mm (307-097, ø8 mm pin/ø6 mm body) and M10/8x21x40 mm (307-085, ø10 mm pin/ø8 mm body).

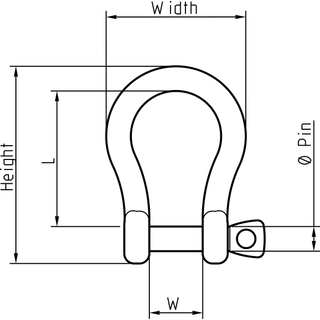

Bow shackles in forged 316 stainless steel are available in four sizes: M5x11x26 mm (307-098), M6x12x33 mm (307-099), M8x16x32 mm (307-026) and M10x19x40 mm (307-027).
The high-load D-shackle in Duplex 2205 steel (307-004, ø12x24x41 mm) is specified for PBB100 blocks and Furlex 404S/E/TD furling systems.

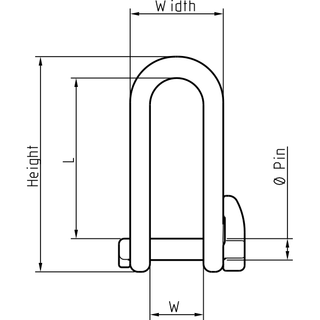

The key shackle in forged 316 stainless steel (307-045, M5x13x38 mm) suits connections where additional body length is needed between two fittings.
The twisted S-hook (307-421, L=54 mm) is a stainless steel clew hook for outhaul systems, attached around the boom and connected to the mainsail clew for fast rigging.

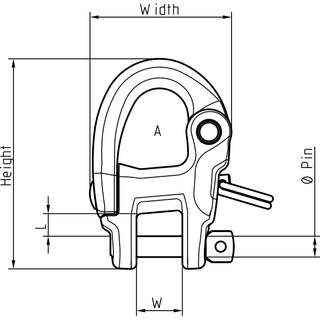

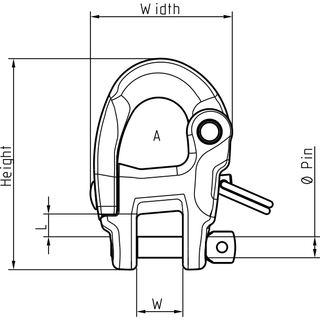

The Optimist snap shackle (307-318) is a class-legal fitting for the Optimist sheet system, designed to allow quick mainsail release without catching clothing.
Snap shackle adaptors replace the standard shackle on a Seldén block for quick-release applications, available in three sizes for BBB40 (404-040-01R), PBB50/BBB60/CX10/GX7.5/GX10 (405-040-01R) and PBB60/PBB70/BBB60/RBB60/CX15/GX15 (406-040-01R).
Snap shackle lead adaptors add a large rounded loop for low-friction line running through the shackle, available for PBB50/BBB60/CX10/GX7.5/GX10 (307-435-01R) and PBB60/PBB70/BBB60/RBB60/CX15/GX15 (307-436-01R).

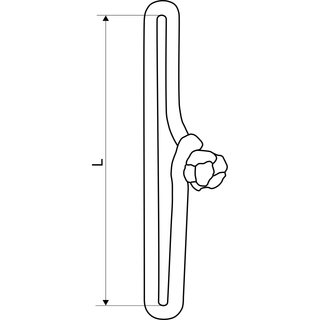

The soft shackle (614-521R) is a ø3 mm Dyneema core loop, 85 mm long, for lightweight temporary attachment of blocks, lines and fittings with a breaking load of 500 kg.
Dinghy class applications
The Optimist snap shackle (307-318) is specifically class-legal for the Optimist sheet system, designed to allow quick mainsail release during sailing without the risk of catching clothing.
