Seldén through-deck leads in hard anodised aluminium for routing control lines cleanly through a deck or coaming, available in 1-sided and 2-sided versions for lines from 5 mm to 12 mm, plus an angled exit bush for leading lines through mast and boom walls.
How to choose
A through-deck lead routes a control line through a hole in the deck or coaming, protecting both the line and the deck edge from wear and giving a clean, finished installation. The choice between 1-sided and 2-sided depends on whether the line is deflected at the fitting.
The 1-sided version is used where the line passes straight through without being deflected on the inside of the deck. It consists of a single hard anodised aluminium fitting with an external thread and an Acetal nut, both with wrench flats for a tight installation. It can also be glued in place if preferred.
The 2-sided version is used where the line needs to be guided on both the upper and lower deck surfaces, or where the deck is thick enough that a single fitting leaves a gap. It consists of upper and lower aluminium fittings connected by an aluminium distance tube that can be cut to the exact deck thickness. The outer surface of the tube has a pattern to help orientate the saw blade for a square cut.
The angled exit bush is a different product for a different purpose. It routes lines through the wall of a mast or boom at an angle rather than straight through, and can also be used as a through-deck lead. It is commonly used to lead the pole downhaul line internally at deck level in classes such as the 420.
Choose size by line diameter. Both 1-sided and 2-sided versions are available for lines up to 5 mm, 7 mm and 10 mm. The 1-sided version is also available for lines up to 12 mm.
What's in this collection

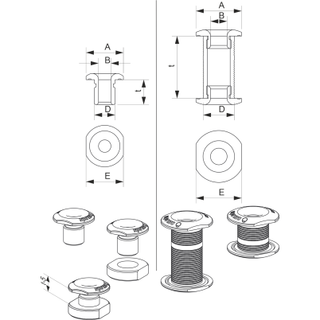

The 1-sided through-deck leads are hard anodised aluminium with Acetal nut, available in four sizes: up to 5 mm (420-510-01R), up to 7 mm (420-511-01R), up to 10 mm (420-512-01R) and up to 12 mm (420-514-01R).
The 2-sided through-deck leads have upper and lower fittings with a cuttable aluminium distance tube, available in three sizes: up to 5 mm (420-520-01R), up to 7 mm (420-521-01R) and up to 10 mm (420-522-01R).
The angled exit bush (319-792) is a nylon fitting for leading lines through mast and boom walls at an angle, also used as a through-deck lead. It is specifically referenced for leading the pole downhaul internally at deck level in the 420 class.
Dinghy class applications
The angled exit bush (319-792) is specifically referenced for the 420 class, where it is used to lead the pole downhaul line internally through the deck fitting.
