Stainless Slotted Eye Terminal, Ø4mm Wire

Swaged eye terminal for ø4mm wire applications with an 8mm x 18mm slot instead of a hole. The slot allows the head of a shackle to pass through allowing a direct wire/shackle connection. Commonly used on catamarans where up to 5 swages are stacked on a single bow shackle to connect forestay, shrouds and trapeze wires to the masts cap tang. Constructed from marine-grade stainless steel, this swage offers superior resistance to corrosion.

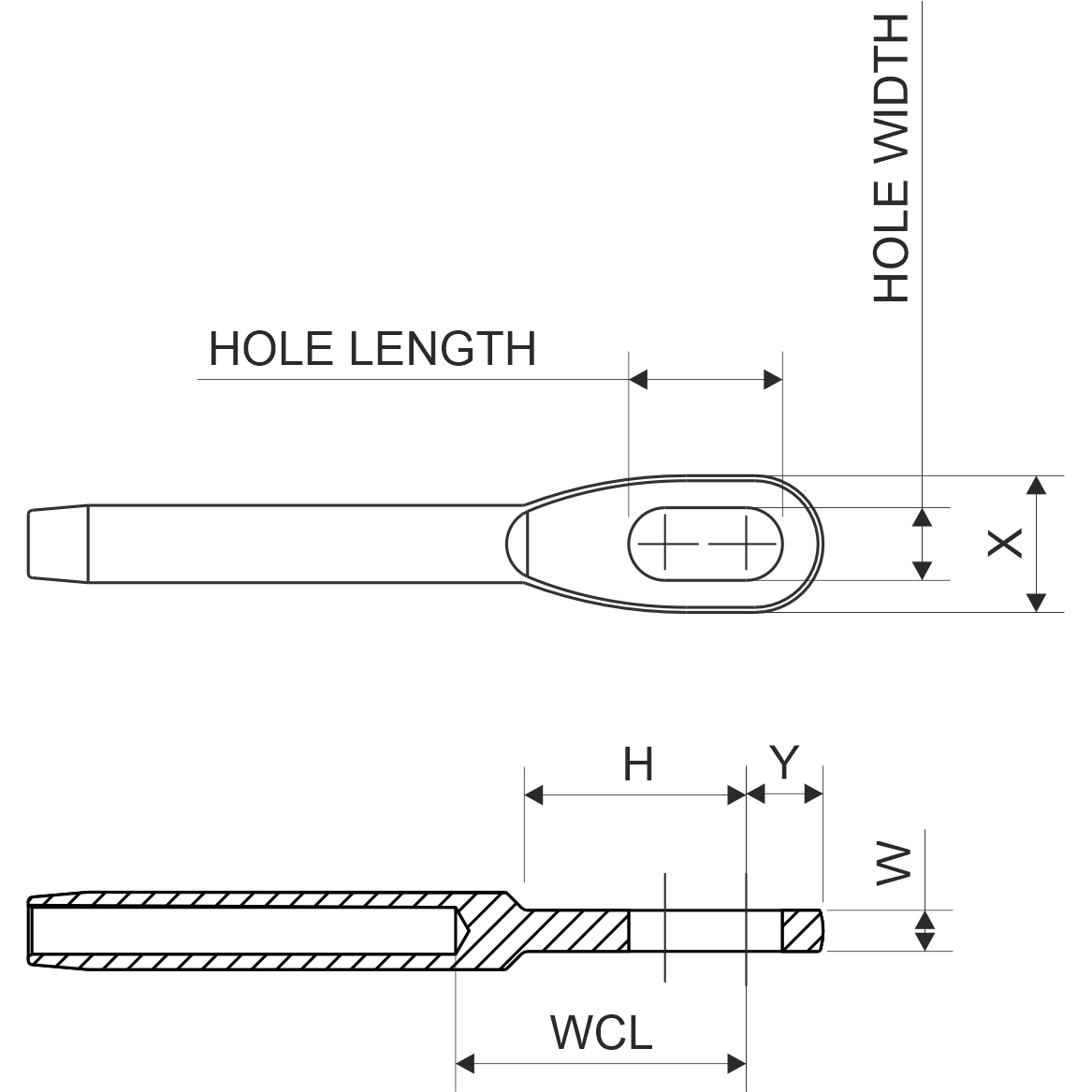

Wire diameter: 4 mm
Hole Width: 8.50 mm
Hole Length: 18
WCL reduct: 32 mm
W: 4.80 mm
X: 16 mm
H: 26.00 mm
Y: 9 mm
