Fully Adjustable Complete Spreader Set, 425mm, Standard 35° Sweep

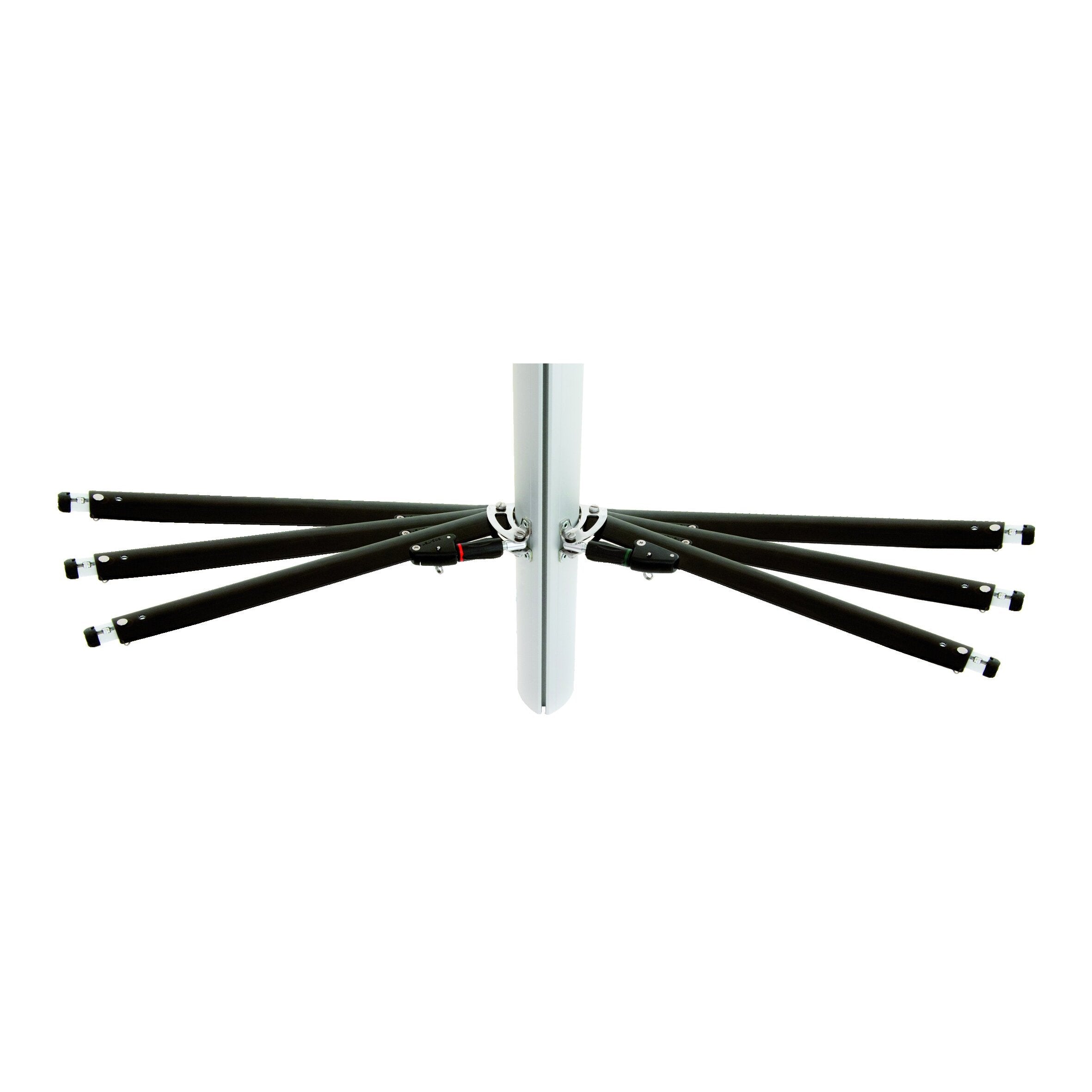

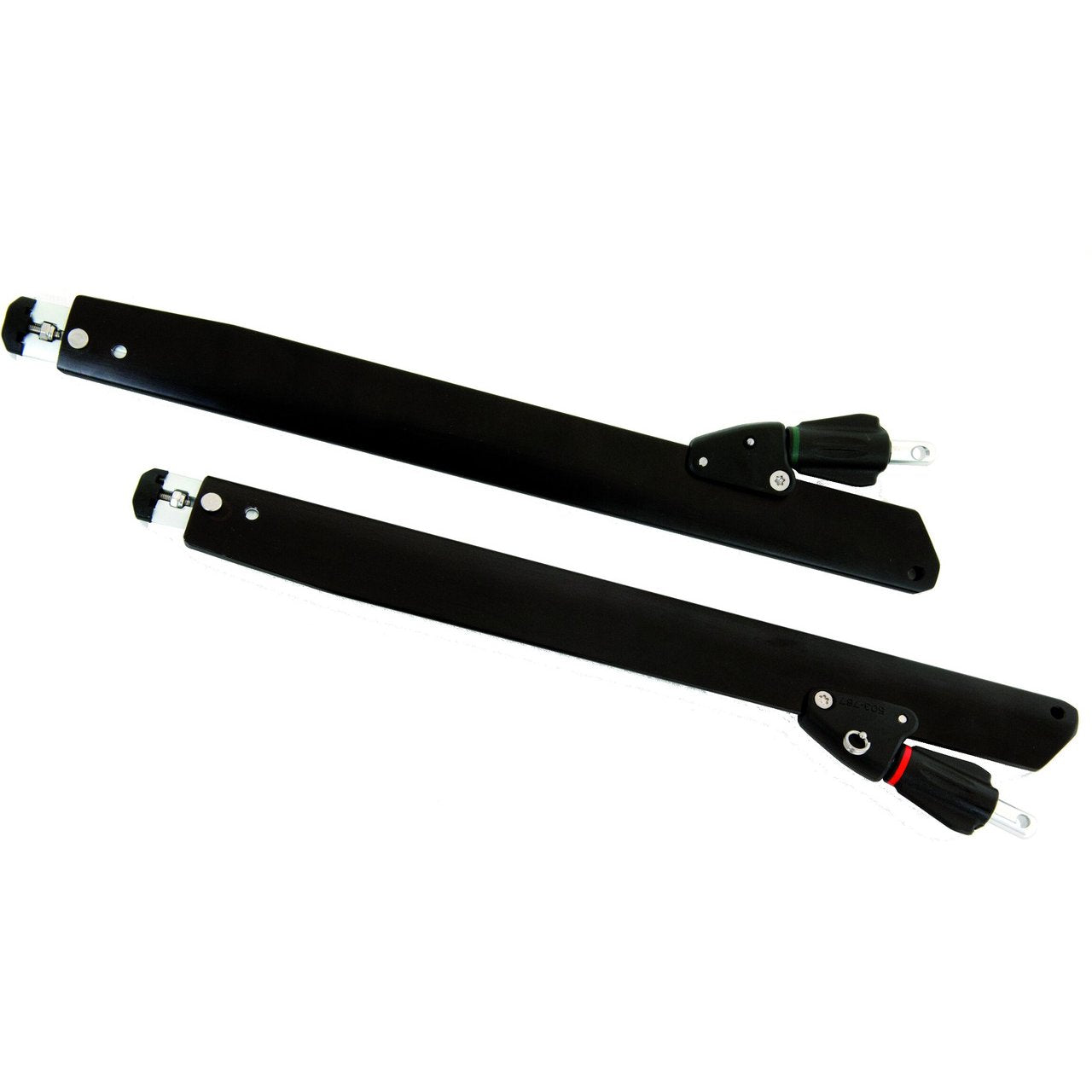

Complete set of black anodised aluminium spreaders to suit the Seldén fully adjustable system. Moulded thumbscrews allow fast and precise adjustment from 0 to 35 degrees in 1 degree increments. A detent pin is provided to lock the angle if required. The adjusters are handed port and starboard for simple 'turn forward to angle forward' function. Adjustment threads are self lubricating for reduced friction. The spreader ends incorporate 2 wire slots to tightly grip 2.5mm and 3.0mm wire. This allows the dihedral angle to be secured so the spreader disects the shroud at the same angle, above and below the adjuster. Spreader length can be adjusted in 5mm increments. Supplied complete with 2 spreaders, thumbscrew angle adjusters, length adjusters, clevis pins, detent angle locking pins and rigging screw oil for initial lubrication.

Colour: Black
