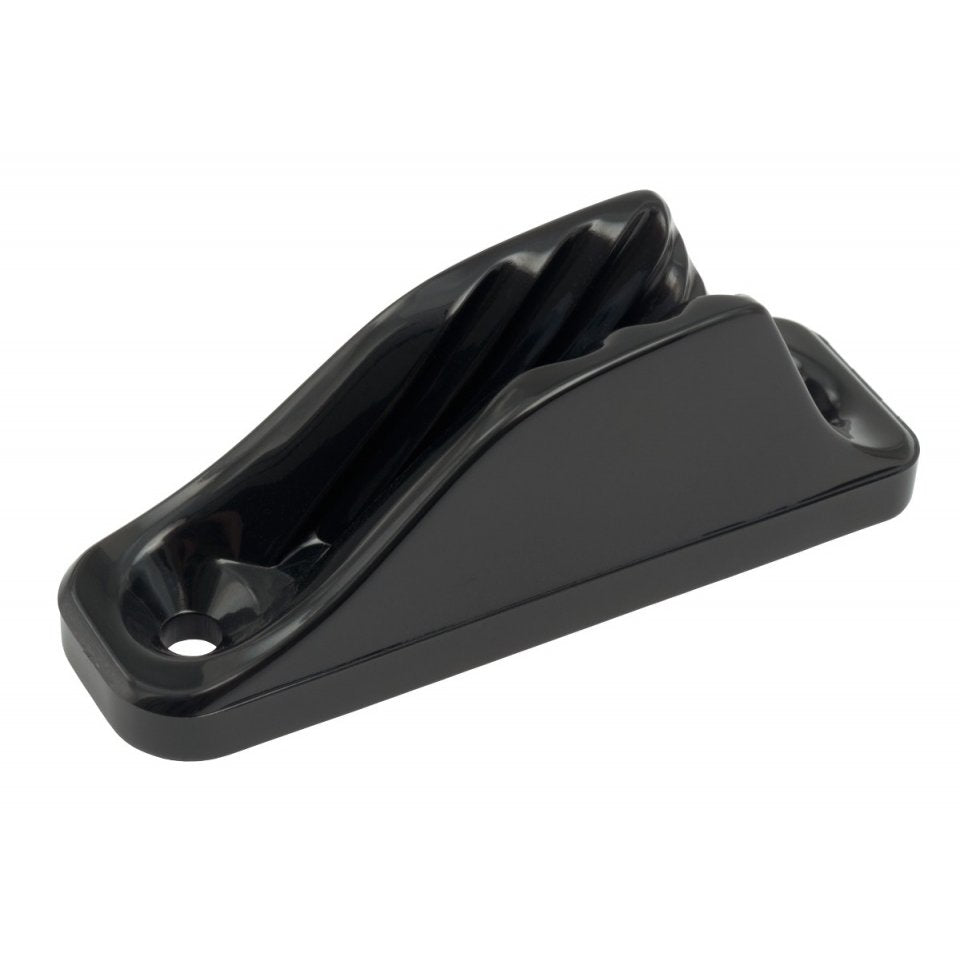

Valley Open Cleat in Composite 6-12 mm line

The Valley Open Cleat in Composite is an excellent choice for low-load applications, designed to secure lines between 6-12 mm. Constructed from durable polymer, this cleat is ideal for lightweight tasks. The rope drops down into the teeth of the cleat for a quick and secure lock that is simple to release.

This versatile cleat can be installed on both flat and curved surfaces, using rivets, countersunk (flathead) screws or bolts. Tapered pads are available to aid in rope alignment, and the pads can be double-stacked to create a riser pad or to achieve a greater angle.

Max line size: 12 mm
Min line size: 6 mm
Hole spacing: 72 mm
Mounting: 2xM6
Weight: 43 g
